What Do You Know about the Mimaki JV150 Series Printer?

-
Mimaki JV150 Series inkjet printers go beyond versatility to deliver a remarkable range of applications. Gamut-extending eco solvent inks and variable drop technology enable you to accomplish anything from fine art reproduction to vehicle wraps and more. Or choose dye sublimation inks to create vibrant textiles and soft signage. Ideal for lighter production environments, the JV150 Series printers’ superb quality, color fidelity and flexibility give you the ability to go beyond the expected to deliver exactly what your customers need.
Mimaki JV150-160

Features:
1. Printing speeds up to 605 SqFt (56.2 SqM) per hour
2. High quality print resolution of up to 1,440 dpi
3. Two model widths: 54-inch (1361 mm) and 64-inch (1610 mm)
4. Choice of eco solvent or dye sublimation ink sets:
- Eco solvent: 8 color options including Orange, and Light Black inks
- Dye sublimation: vibrant 6 color dye sub options
5. Nozzle Check Unit and Nozzle Recovery System
6. UISS and optional MBIS III on board 2 liter bulk ink system
7. 3-way intelligent heater

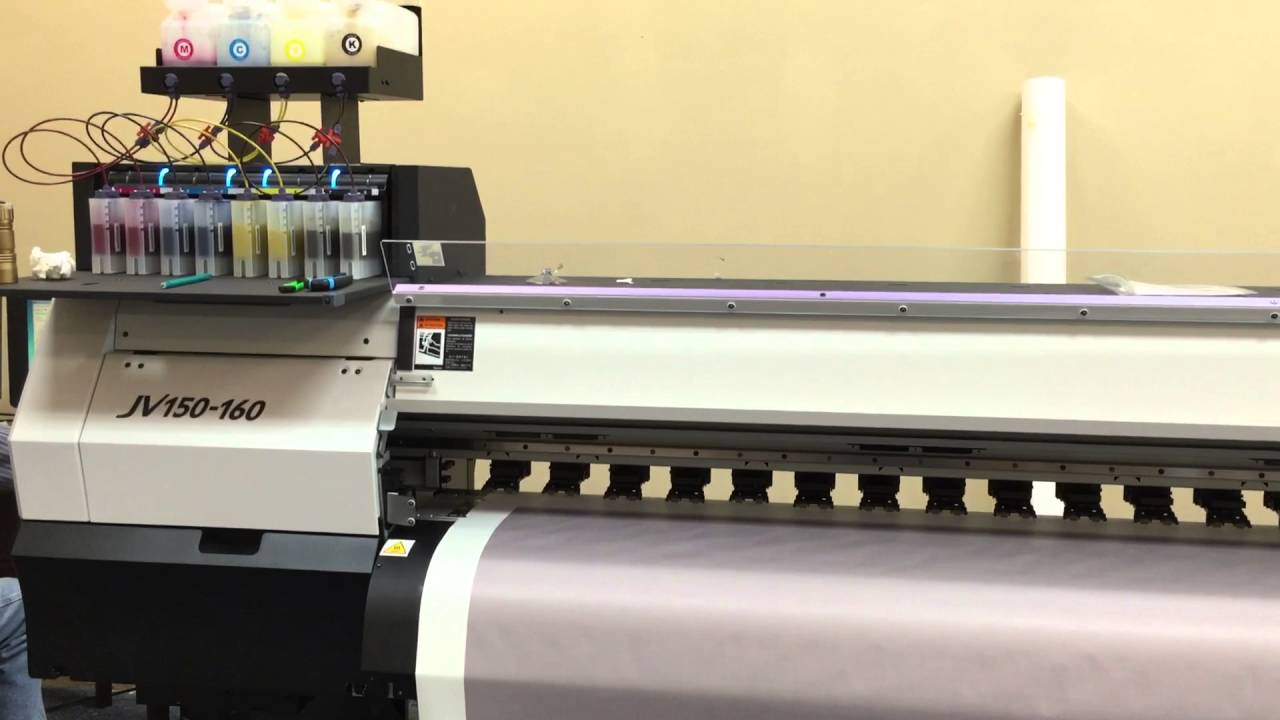

Mimaki JV150-160 printer

Applications
1. With eco-solvent ink:
Signage, Vehicle graphics, Point-of-purchase displays, Banners, Posters, Exhibition graphics, Window clings and more…

2. With dye sublimation ink:
Flags, Fashion & Sportswear, Promotional, Exhibition soft signage, T-shirt transfers and more…
application of Mimaki JV150-160


Specifications:

Print system
On-demand piezo, one print head per color
8 channels for a variety of ink configurations
Max print width
JV150-130: 53.5 inches (1361 mm)
JV150-160: 63.3 inches (1610 mm)
Print resolution
300, 540, 720, 1080, 1440 dpi
Maximum media width
JV150-130: 1,371mm (54.0″)
JV150-160: 1,620mm (63.8″)
Max print speed
JV150-130: 526 SqFt/Hr (48.9 SqM/Hr)
JV150-160: 605 SqFt/Hr (56.2 SqM/Hr)
Ink type
Mimaki SS21 Eco-Solvent: C, M, Y, K, Lc, Lm, Lk, Or
Mimaki ES3 Eco-Solvent: C, M, Y, K, Lc, Lm
Mimaki Sb54 Dye Sublimation: Bl, M, Y, K, Lbl, Lm
Ink capacity
440ml cartridges standard
Max roll weight
88 lbs. (40 kg)
Max media thickness
1.0 mm
Operational environment
Temp: 59˚ – 86˚ F (15˚ – 30˚ C)
35-65% RH (non-condensing)
Connectivity
USB 2.0
Power supply
Single-phase AC 100-120V (AC 220-240V) x2
Power consumption
100V: 1.44kW × 1 or less, 200V: 1.92kW × 1 or less
Dimensions (W × D × H)
JV150-130: 98 x 28 x 71 inches (249 x 71 x 145 cm)
JV150-160: 108 x 28 x 71 inches (274 x 71 x 145 cm)
Weight
JV150-130: 353 lbs. (160 kg)
JV150-160: 408 lbs. (185 kg)

For more information, please contact us.
